PowerPlex® ESX 16 and ESI 16 Fast Systems
Co-Amplification and 5-Color Detection of ENFSI-Recommended STR Loci
- Amplification and detection in <50 minutes
- Include D10S1248, D22S1045 and D2S441 as miniSTRs and D12S391 and D1S1656 as midiSTRs (do not include SE33)
- Superior sensitivity and tolerance to common inhibitors to obtain full profiles from low-level DNA samples
Catalog Number:
Choose a system
Size
Catalog Number: DC1610
Catalog Number: DC1611
Catalog Number: DC1630
Catalog Number: DC1631
Catalog Number: DC1620
Catalog Number: DC1621
Rapid Results from Degraded Samples
The PowerPlex® ESX 16 and ESI 16 Fast Systems meet the ENFSI recommendations for DNA profile sharing across Europe and allow co-amplification and detection of sixteen loci, including D18S51, D21S11, TH01, D3S1358, Amelogenin, D16S539, D2S1338, D1S1656, D10S1248, FGA, D8S1179, vWA, D22S1045, D19S433, D12S391 and D2S441. These kits can be used for both casework and database samples, simplifying workflows. Rapid cycling technology enables amplification to be done in less than 50 minutes. Additionally, these kits have superior tolerance to common inhibitors and superior sensitivity to obtain full profiles from low-level DNA and are robust enough to genotype degraded DNA samples through the use of miniSTR loci.
These two STR systems can be used to complement each other when analyzing degraded or challenging samples to maximize recovery of allelic information from as many loci as possible and allow confirmation of results obtained with the other system.
These systems are compatible with Spectrum and Spectrum Compact CE Systems and Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.
Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.
PowerPlex® ESX 16 Fast System
The PowerPlex® ESX 16 Fast System is designed with the loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) as mini-STRs (<125bp; D2S441, D10S1248 and D22S1045) or midi-STRs (125–185bp; D1S1656 and D12S391).
PowerPlex® ESI 16 Fast System
The PowerPlex® ESI 16 Fast System is designed with six of the original seven European Standard Set (ESS) loci (D3S1358, D18S51, TH01, vWA, D8S1179 and the more common FGA alleles) along with D16S539 and D19S433 as smaller amplicons (<250bp), while the new loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) (D1S1656, D2S441, D10S1248, D12S391 and D22S1045) are present as larger amplicons.
Rapid Processing Solutions for PowerPlex® Systems
The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.
Which Product is Right for Me?
Take me to the Product SelectorProtocols
Complete Protocol
Quick Protocols
Specifications
Catalog Number:
What's in the box?
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 2 × 200μl | View Product | |
PowerPlex® ESX 16 Fast Allelic Ladder Mix |
DG388B | 4 × 50μl | ||
PowerPlex® ESX 16 Fast 10X Primer Pair Mix |
DK261B | 4 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 4 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 10 × 1,250μl | View Product |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
What's in the box?
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 1 × 200μl | View Product | |
PowerPlex® ESX 16 Fast Allelic Ladder Mix |
DG388B | 1 × 50μl | ||
PowerPlex® ESX 16 Fast 10X Primer Pair Mix |
DK261B | 1 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 1 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 5 × 1,250μl | View Product |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
What's in the box?
| Item | Part # | Size |
|---|---|---|

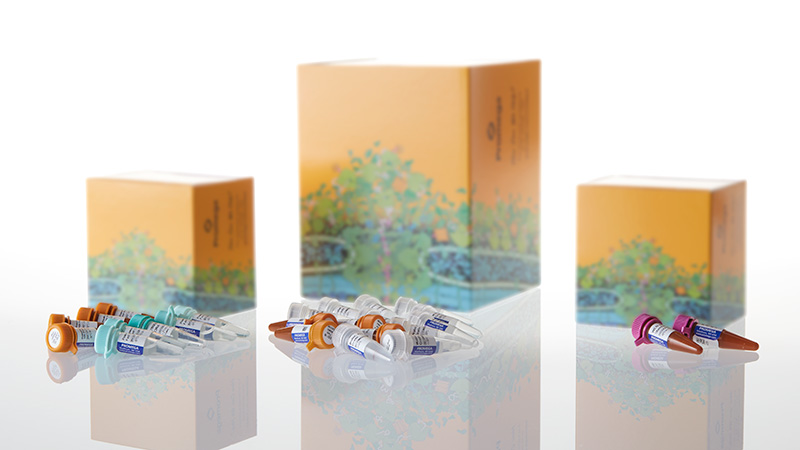

PowerPlex® ESX 16 Fast System |
DC1610 | 1 × 400 reactions |

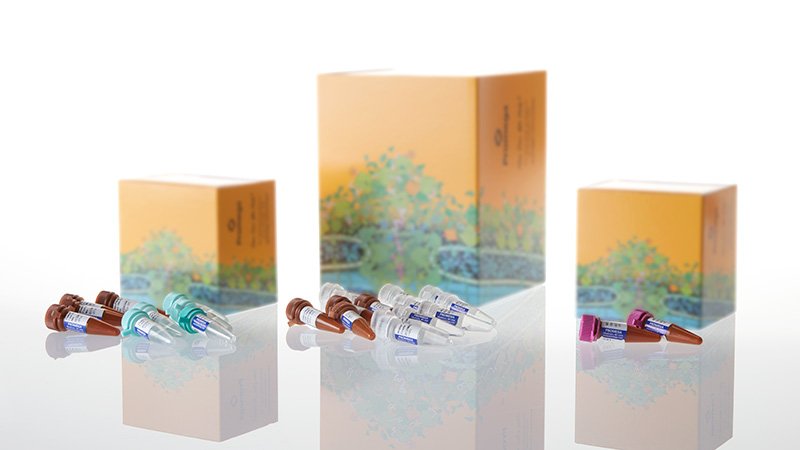

PowerPlex® ESI 16 Fast System |
DC1620 | 1 × 400 reactions |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
What's in the box?
| Item | Part # | Size |
|---|---|---|

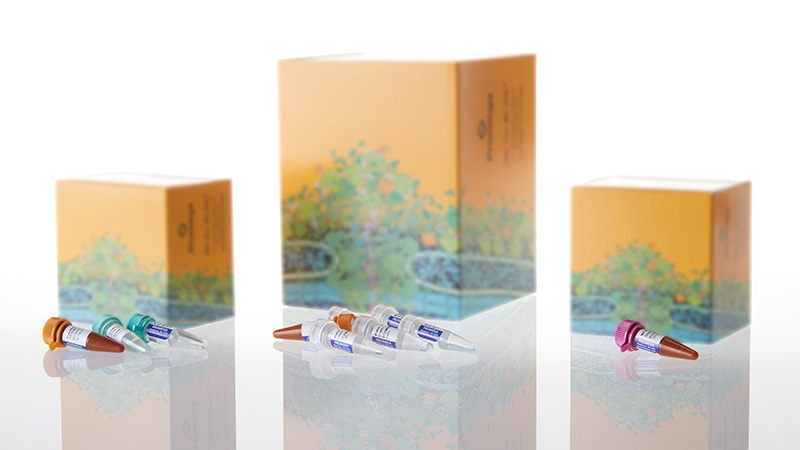

PowerPlex® ESX 16 Fast System |
DC1611 | 1 × 100 reactions |

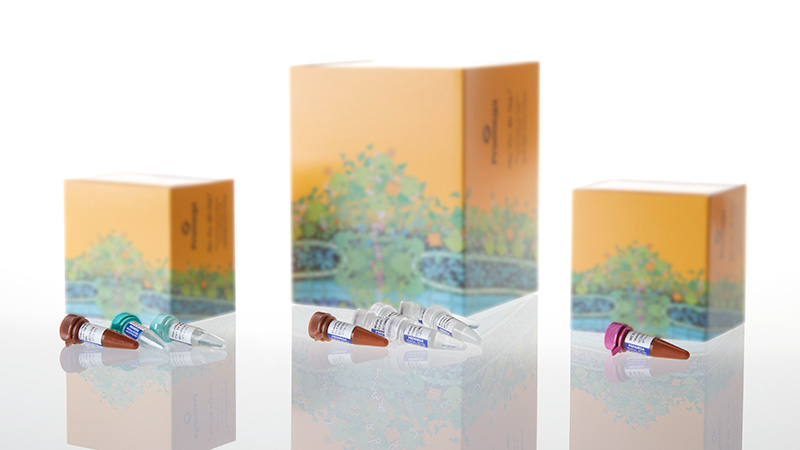

PowerPlex® ESI 16 Fast System |
DC1621 | 1 × 100 reactions |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
What's in the box?
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 2 × 200μl | View Product | |
PowerPlex® ESI 16 Fast Allelic Ladder Mix |
DG387B | 4 × 50μl | ||
PowerPlex® ESI 16 Fast 10X Primer Pair Mix |
DK255B | 4 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 4 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 10 × 1,250μl | View Product |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
What's in the box?
| Item | Part # | Size | Concentration | Available Separately |
|---|---|---|---|---|
|
2800M Control DNA |
DD710A | 1 × 25μl | 10ng/μl | View Product |
WEN Internal Lane Standard 500 ESS |
DG510A | 1 × 200μl | View Product | |
PowerPlex® ESI 16 Fast Allelic Ladder Mix |
DG387B | 1 × 50μl | ||
PowerPlex® ESI 16 Fast 10X Primer Pair Mix |
DK255B | 1 × 250μl | ||
PowerPlex® ESI/ESX Fast 5X Master Mix |
DP113A | 1 × 500μl | ||
|
Water, Amplification Grade |
DW099A | 5 × 1,250μl | View Product |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
